304 316L Stainless Steel Photochemical Etching Etched Filter Mesh Manufacturer

304 316L Stainless Steel Photochemical Etching Etched Filter Mesh Manufacturer

Brief Introduction of Etched Filter Mesh:

Specifications of Etched Filter Mesh:

Features of Etched Filter Mesh:

• Micron-Level Precision: Achieves exact tolerances with exceptional accuracy.
• Clean, Burr-Free Cuts: Chemical etching avoids mechanical stress and deformation.
• Fully Customizable Designs: Shapes and patterns adapted to your specific needs.
• Resistant to Corrosion & Heat: Performs reliably in extreme conditions.
• Reliable Filtration Efficiency: Delivers consistent and even flow control.

Applications of Etched Filter Mesh:

• Food & Beverage Processing – Sanitary filtration for fluids
• Electronic Components – EMI shielding and acoustic panels
• Automotive Systems – Filters for fuel, oil, and air systems
• Industrial Applications – Filtration for liquids and gaseous media
• Medical Devices – Sterile-grade filters and precision parts
• Aerospace & Defense – Precision systems for fluid regulation

How is Stainless Steel Etched Filter Mesh?

1. Designing: CAD drawing of the mesh pattern

2. Photolithography: Applying photoresist to the metal surface

3. UV Exposure: Using a photomask to expose specific areas

4. Etching: Chemical solution removes unprotected metal areas

5. Cleaning & Inspection: Final mesh is cleaned and quality-checked

This non-contact process avoids mechanical stress, ensuring high accuracy and repeatability.

The Benefits of Chemical Etching:

• No Burrs or Sharp Edges – Ensures safety and cleanliness

• High Reproducibility – Perfect for mass production

• Flexible Design Options – Complex geometries possible

• Minimal Material Deformation – Ideal for thin metal sheets

• Eco-Friendly Process – Less waste compared to mechanical cutting

How to Custom Filter Mesh from Us?

1. Send Your Requirements: Mesh size, shape, material, quantity

2. Get a Free Design Consultation: Our engineers will assist with DFM (design for manufacturing)

3. Rapid Prototyping: Fast sampling available for approval

4. Mass Production & Delivery: ISO-certified, quality-guaranteed production

5. After-Sales Support: Reliable technical and customer service

Contact us today to get your custom etched filter mesh quote!

High Temperature Resistant Etched Filter Mesh

Stainless Steel Etched Filter Mesh

Custom metal filter mesh

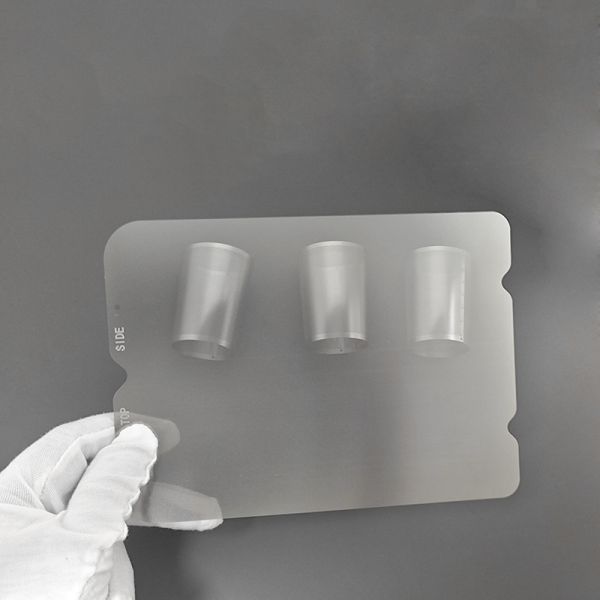

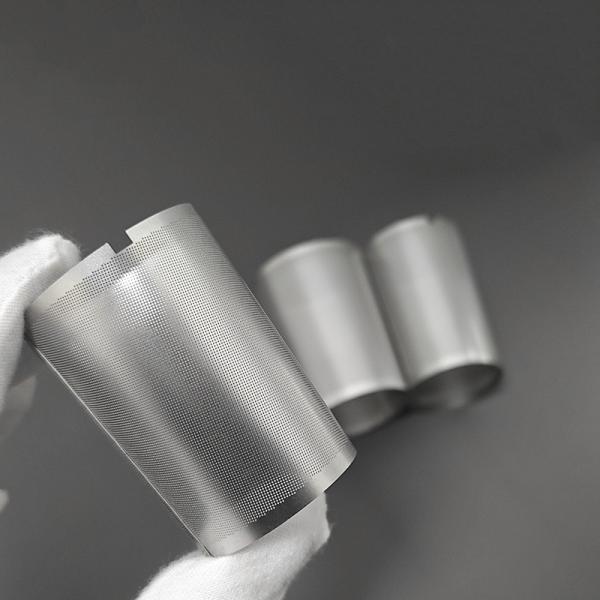

304 316L Stainless Steel Photochemical Etching Etched Filter Mesh Manufacturer Images
